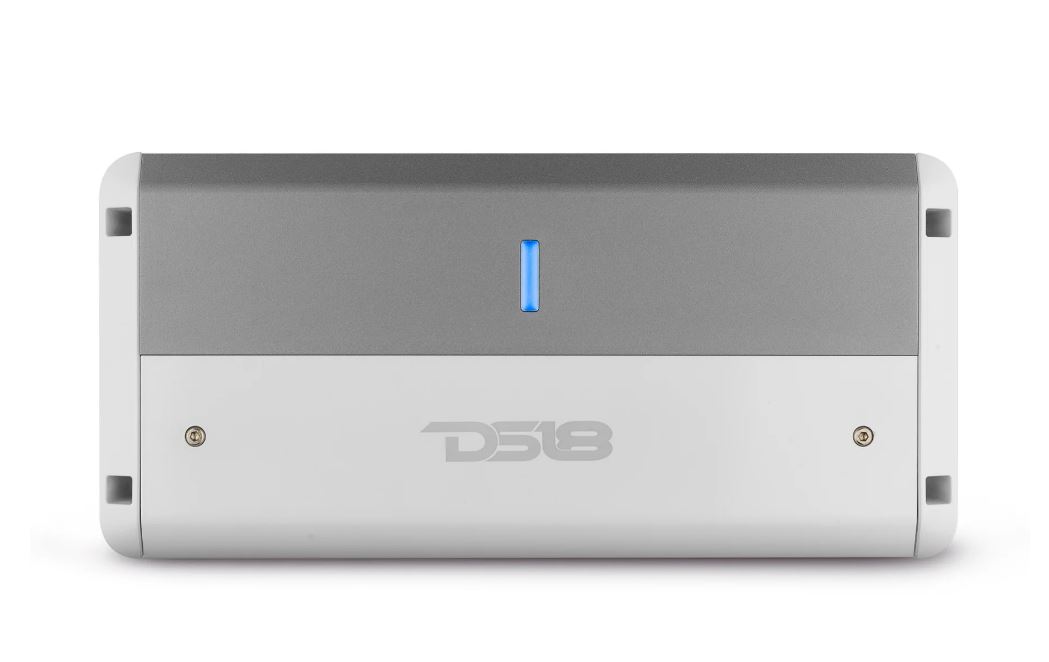

4-Channel Marine IPX5 Amplifier 150x4 Watts @ 4-Ohm
SKU: DD-NXL-M4
Brand part number: NXL-M4
Brand: DS18
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Specifications

    POWER
    Total Watts (Peak) 1800W
    RMS Power @ 4 ohm 4 x 150W
    RMS Power @ 2 ohm 4 x 230W
    RMS Power @ 4 ohm Bridge 2 x 440W
    AUDIO
    Frequency Response 20Hz - 20KHz
    Signal to Noise Ratio >90dB
    Efficiency @ 4ohm >97%
    Channel Separation >55dB
    Total Harmonic Distortion (THD) <0.15%
    Low Level Input Range 0.2V-6V
    High Level Input Yes: ≥5V
    Selectable X-Over HPF/LPF/FULL
    X-Over Filter Range 40Hz - 2KHz
    Bass Boost Range 0-12dB
    Bass Boost Frequency 45Hz ±5Hz
    Phase Selector No
    FEATURES
    Amplifier Class Digital (D)
    Amplifier Type Stereo Full Range
    Number of Channels 4 Channels
    Minimum Impedance 2 ohm (Stereo) / 4 ohm (Bridge)
    Led Indicator Clipping / Protect / Power
    Power Input Terminal Size 4 Ga
    Fuse Size 70A (2x35A)
    Thermal Protection Yes
    Over-Load Protection Yes
    DC Output Protection Yes
    Short Circuit Output Protection Yes
    Voltage Input Protection Yes
    Clipping Protection Yes
    Body Color / Finish Gray+White / Aluminum+ABS
    Extra Features
    Water Resistant Rated Yes, IPX5 (Water Splashing)
    PCB Layout Design 4 Layers / Coated
    RCA Output Yes, 2 CH (Left / Right)
    UV Compliant Yes, UV Protected and PCB Coated
    Input Sum Selector Yes, 2Ch or 4Ch Input Mode
    Tiffany Style RCA Yes
    High Level Input Yes, 4ch Speaker level
    Stainless Steel Hardware Yes, (Screws)
    Potenciometers High Quality Metal Knob
    Remote Level Control No
    Measurement
    Overall Length 9.6" / 245mm
    Overall Wide 4.5" / 116mm
    Overall Height 1.7" / 43mm
    Heatsink Length 8.6" / 220mm

    DS18 NXL-M4 Full Range 4-Channel IPX5 Marine Grade Amplifier 150x4 Watts @ 4 Ohm

    Designed for intense sessions that keep the party boat rocking; the NXL-M4 is DS18’s newest high-quality, powerful amplifier for the marine or powersport enthusiast looking for big sound with a small footprint!

    As a Class D Digital amplifier, the NXL-M4 uses direct insert speaker and power terminals significantly smaller than your average amplifier, making it the perfect size for any vehicle’s custom build: but, what it lacks in size it makes up for in power.

    The NXL-M4 handles 150W x 4CH @ 4 Ohms; 230W x 4CH @ 2 Ohms; and 440W x 2CH @ 4 Ohms Bridge of RMS Power and 1800W Peak Power.

    Get clean, well defined sound for with enough features (Fully Variable Bass Boost, Low Pass Filter, and High Pass Filter) to tune your music perfectly for optimal audio enjoyment! This full range amplifier handles all speakers insanely well and has the features to make sure they play the way you want them to!

    This amplifier is tough enough to stand up to the worst the waves throw at you! All controls are guarded by high strength front covers that guarantee impenetrable defense against the elements; coated 4 layer PCB helps prevent corrosion caused by salt water; and Voltage, Thermal, and Short Circuit Protection for easy monitoring of your power levels.

    Order the NXL-M4 for insane power out on the water!

    Highlights

    • Hardware resistant to corrosion and UV Protection
    • Coated 4 Layers PCB to prevent corrosion
    • IPX5 Water Resistance Grade
    • High Level Input For Easy Factory Integration
    • Front cover to keep the controls safe to the elements
    • LED Clip Indicator to easier adjustment
    • Stable and Reliable Class D Circuit Design
    • Sound Quality Verification Using AP Instruments
    • Direct Insert Power and Speaker Terminals
    • Short Circuit, Thermal, and Voltage Protection
    • 4 channel input / 2 channel output

    Great For

    • Marine Audio
    • Jeep Audio
    • ATV Audio
    • Powersports Audio

    Specifications

    POWER
    Total Watts (Peak) 1800W
    RMS Power @ 4 ohm 4 x 150W
    RMS Power @ 2 ohm 4 x 230W
    RMS Power @ 4 ohm Bridge 2 x 440W
    AUDIO
    Frequency Response 20Hz - 20KHz
    Signal to Noise Ratio >90dB
    Efficiency @ 4ohm >97%
    Channel Separation >55dB
    Total Harmonic Distortion (THD) <0.15%
    Low Level Input Range 0.2V-6V
    High Level Input Yes: ≥5V
    Selectable X-Over HPF/LPF/FULL
    X-Over Filter Range 40Hz - 2KHz
    Bass Boost Range 0-12dB
    Bass Boost Frequency 45Hz ±5Hz
    Phase Selector No
    FEATURES
    Amplifier Class Digital (D)
    Amplifier Type Stereo Full Range
    Number of Channels 4 Channels
    Minimum Impedance 2 ohm (Stereo) / 4 ohm (Bridge)
    Led Indicator Clipping / Protect / Power
    Power Input Terminal Size 4 Ga
    Fuse Size 70A (2x35A)
    Thermal Protection Yes
    Over-Load Protection Yes
    DC Output Protection Yes
    Short Circuit Output Protection Yes
    Voltage Input Protection Yes
    Clipping Protection Yes
    Body Color / Finish Gray+White / Aluminum+ABS
    Extra Features
    Water Resistant Rated Yes, IPX5 (Water Splashing)
    PCB Layout Design 4 Layers / Coated
    RCA Output Yes, 2 CH (Left / Right)
    UV Compliant Yes, UV Protected and PCB Coated
    Input Sum Selector Yes, 2Ch or 4Ch Input Mode
    Tiffany Style RCA Yes
    High Level Input Yes, 4ch Speaker level
    Stainless Steel Hardware Yes, (Screws)
    Potenciometers High Quality Metal Knob
    Remote Level Control No
    Measurement
    Overall Length 9.6" / 245mm
    Overall Wide 4.5" / 116mm
    Overall Height 1.7" / 43mm
    Heatsink Length 8.6" / 220mm

    DS18 NXL-M4 Full Range 4-Channel IPX5 Marine Grade Amplifier 150x4 Watts @ 4 Ohm

    Designed for intense sessions that keep the party boat rocking; the NXL-M4 is DS18’s newest high-quality, powerful amplifier for the marine or powersport enthusiast looking for big sound with a small footprint!

    As a Class D Digital amplifier, the NXL-M4 uses direct insert speaker and power terminals significantly smaller than your average amplifier, making it the perfect size for any vehicle’s custom build: but, what it lacks in size it makes up for in power.

    The NXL-M4 handles 150W x 4CH @ 4 Ohms; 230W x 4CH @ 2 Ohms; and 440W x 2CH @ 4 Ohms Bridge of RMS Power and 1800W Peak Power.

    Get clean, well defined sound for with enough features (Fully Variable Bass Boost, Low Pass Filter, and High Pass Filter) to tune your music perfectly for optimal audio enjoyment! This full range amplifier handles all speakers insanely well and has the features to make sure they play the way you want them to!

    This amplifier is tough enough to stand up to the worst the waves throw at you! All controls are guarded by high strength front covers that guarantee impenetrable defense against the elements; coated 4 layer PCB helps prevent corrosion caused by salt water; and Voltage, Thermal, and Short Circuit Protection for easy monitoring of your power levels.

    Order the NXL-M4 for insane power out on the water!

    Highlights

    • Hardware resistant to corrosion and UV Protection
    • Coated 4 Layers PCB to prevent corrosion
    • IPX5 Water Resistance Grade
    • High Level Input For Easy Factory Integration
    • Front cover to keep the controls safe to the elements
    • LED Clip Indicator to easier adjustment
    • Stable and Reliable Class D Circuit Design
    • Sound Quality Verification Using AP Instruments
    • Direct Insert Power and Speaker Terminals
    • Short Circuit, Thermal, and Voltage Protection
    • 4 channel input / 2 channel output

    Great For

    • Marine Audio
    • Jeep Audio
    • ATV Audio
    • Powersports Audio

    Products specifications
    Master Pack1
    Unit of MeasureEACH
    Warranty1 YEAR
    FF Level100
    Products specifications
    Master Pack1
    Unit of MeasureEACH
    Warranty1 YEAR
    FF Level100
