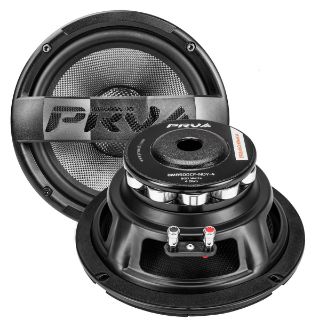

8" NEODYMIUM MIDRANGE LOUDSPEAKER
SKU: PV-8MR500CF-NDY-4
Brand part number: 8MR500CF-NDY-4
Brand: PRV Audio


    Eta:

      Ship to
      *
      *
      Shipping Method
      Name
      Estimated Delivery
      Price
      No shipping options

      Features



      The MR500CF-NDY series was designed for Power sports applications, featuring a water-resistant design to ensure optimum performance taking into account the effects of the outdoor environment!



      Ideal for upgrading your sound system in your boat, UTV, 4-wheeler, or motorcycle, this mid range speaker becomes the new standard in vocal reproduction for outdoor applications. Constructed of high-end materials like a carbon fiber cone, high-temperature voice coil, and huge neodymium magnet, this driver produces natural sound with remarkably low distortion.

      8MR500CF-NDY-4 Highlights
      • Water Resistant with true PRO audio midrange performance
      • Damped carbon fiber cone lowers moving mass and minimizes unwanted resonances
      • Low inductance and extended frequency response
      • Powerful neodymium magnet structure features distortion-canceling fixtures
      • Fast transient response, minimal tonal coloration, and deep, dynamic midbass
      • Sold in pairs – Grill and screws are included
      • Also available on 6″ – 6MR500CF-NDY-4

      8MR500CF-NDY-4 Terminal

      The suspension design of this midrange features the single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling, complemented by a high-power neodymium radial slugs that immerse the voice coil in a strong magnetic field.

      You can expect excellent off-axis and transient response from this water-resistant mid range for a great sound stage and realistic sound reproduction.


      8MR500CF-NDY-4 Magnet

      Built for loud, clear vocal performance in tight, compact spaces, PRV Audio’s 8MR500CF-NDY-4 neodymium-powered midrange features a sensitivity of 96 dB (2.83V/1m) and weighs about 4.16 pounds! 4 ohm impedance. Pro Audio On Wheels Series is dedicated to delivering outstanding pro audio performance to your motorsports application.

      A bumped back plate, vented magnet system, vented pole piece, high-temperature voice coil, allow for high power handling while protecting this driver from extreme transient power peaks.

      Technical Details



      GENERAL SPECIFICATIONS

      Nominal Diameter8″ (203 mm)
      Nominal impedance4 Ohm
      Nominal Power Handling250 Watts
      Continuous Program Power (RMS)500 Watts
      Max Peak Power1000 Watts
      Sensitivity 2.83V at 1m96 dB
      Recommended Hi Pass Crossover** **For Full Power Handling85 Hz** **12db Per Octave Crossover
      Frequency Response95 – 10,000 Hz
      Voice Coil Diameter2.5″ (51 mm)
      Voice Coil WireCCAW
      Voice Coil Winding Depth10.0 mm
      Former MaterialKapton
      Magnetic Gap Depth7.0 mm
      Frame MaterialStamped Steel
      8MR500CF-NDY-4 Frequency Response

      THIELE-SMALL PARAMETERS

      Equivalent VolumeVas18.62 l
      Excursion (mathematical)***Xmax3.25 mm
      Free Air ResonanceFs62.90  Hz
      Mechanical FactorQms10.06
      Electrical FactorQes0.25
      Total FactorQts0.25
      Cone AreaSd227 cm²
      Mechanical MassMms24.73 g
      Bl FactorBl11.29 Tm
      Dc ResistanceRe3.3 Ohm
      InductanceLe0.047 mH at 1 kHz
      Mechanical Mass Without AirMmd22.79 g
      Mechanical ComplianceCms0.258 mm/N

      ***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


      EXTRA INFO

      Overall Diameter8.27″ (210 mm)
      Front Mount Baffle Cutout7.18″ (182.5 mm)
      Mounting Depth3.34″ (85 mm)
      Overall Depth3.74″ (95 mm)
      Net Weight4.16 Lbs (1.89 kg) unit
      Shipping Weight10.18 Lbs (4.62 kg) pair
      Carton Dimensions W x L x H18.9″ x 8.86″ x 5.98″ (480 x 225 x 152 mm)
      8MR500CF-NDY-4 Dimensions


      Features



      The MR500CF-NDY series was designed for Power sports applications, featuring a water-resistant design to ensure optimum performance taking into account the effects of the outdoor environment!



      Ideal for upgrading your sound system in your boat, UTV, 4-wheeler, or motorcycle, this mid range speaker becomes the new standard in vocal reproduction for outdoor applications. Constructed of high-end materials like a carbon fiber cone, high-temperature voice coil, and huge neodymium magnet, this driver produces natural sound with remarkably low distortion.

      8MR500CF-NDY-4 Highlights
      • Water Resistant with true PRO audio midrange performance
      • Damped carbon fiber cone lowers moving mass and minimizes unwanted resonances
      • Low inductance and extended frequency response
      • Powerful neodymium magnet structure features distortion-canceling fixtures
      • Fast transient response, minimal tonal coloration, and deep, dynamic midbass
      • Sold in pairs – Grill and screws are included
      • Also available on 6″ – 6MR500CF-NDY-4

      8MR500CF-NDY-4 Terminal

      The suspension design of this midrange features the single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling, complemented by a high-power neodymium radial slugs that immerse the voice coil in a strong magnetic field.

      You can expect excellent off-axis and transient response from this water-resistant mid range for a great sound stage and realistic sound reproduction.


      8MR500CF-NDY-4 Magnet

      Built for loud, clear vocal performance in tight, compact spaces, PRV Audio’s 8MR500CF-NDY-4 neodymium-powered midrange features a sensitivity of 96 dB (2.83V/1m) and weighs about 4.16 pounds! 4 ohm impedance. Pro Audio On Wheels Series is dedicated to delivering outstanding pro audio performance to your motorsports application.

      A bumped back plate, vented magnet system, vented pole piece, high-temperature voice coil, allow for high power handling while protecting this driver from extreme transient power peaks.

      Technical Details



      GENERAL SPECIFICATIONS

      Nominal Diameter8″ (203 mm)
      Nominal impedance4 Ohm
      Nominal Power Handling250 Watts
      Continuous Program Power (RMS)500 Watts
      Max Peak Power1000 Watts
      Sensitivity 2.83V at 1m96 dB
      Recommended Hi Pass Crossover** **For Full Power Handling85 Hz** **12db Per Octave Crossover
      Frequency Response95 – 10,000 Hz
      Voice Coil Diameter2.5″ (51 mm)
      Voice Coil WireCCAW
      Voice Coil Winding Depth10.0 mm
      Former MaterialKapton
      Magnetic Gap Depth7.0 mm
      Frame MaterialStamped Steel
      8MR500CF-NDY-4 Frequency Response

      THIELE-SMALL PARAMETERS

      Equivalent VolumeVas18.62 l
      Excursion (mathematical)***Xmax3.25 mm
      Free Air ResonanceFs62.90  Hz
      Mechanical FactorQms10.06
      Electrical FactorQes0.25
      Total FactorQts0.25
      Cone AreaSd227 cm²
      Mechanical MassMms24.73 g
      Bl FactorBl11.29 Tm
      Dc ResistanceRe3.3 Ohm
      InductanceLe0.047 mH at 1 kHz
      Mechanical Mass Without AirMmd22.79 g
      Mechanical ComplianceCms0.258 mm/N

      ***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


      EXTRA INFO

      Overall Diameter8.27″ (210 mm)
      Front Mount Baffle Cutout7.18″ (182.5 mm)
      Mounting Depth3.34″ (85 mm)
      Overall Depth3.74″ (95 mm)
      Net Weight4.16 Lbs (1.89 kg) unit
      Shipping Weight10.18 Lbs (4.62 kg) pair
      Carton Dimensions W x L x H18.9″ x 8.86″ x 5.98″ (480 x 225 x 152 mm)
      8MR500CF-NDY-4 Dimensions

      Products specifications
      Master Pack2
      Unit of MeasurePAIR
      Warranty1 YEAR
      FF Level100
      Products specifications
      Master Pack2
      Unit of MeasurePAIR
      Warranty1 YEAR
      FF Level100
