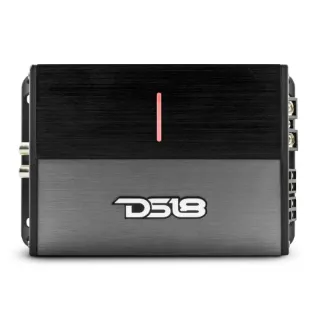

Compact Full-Range Class D 4-Channel Stereo Amplifier 1600 Watts RMS
SKU: DD-ION16004D
Brand part number: ION16004D
Brand: DS18
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    KEY FEATURES

    STEREO FULL-RANGE

    STEREO FULL-RANGE

    CLASS D

    CLASS D

    4 CHANNELS

    4 CHANNELS

    LED INDICATOR

    LED INDICATOR

    High Efficiency Micro Digital Design

    HIGH EFFICIENCY MICRO DIGITAL DESIGN

    COOLING FAN

    COOLING FAN

    TECHNICAL DATA

    DOWNLOAD THE USER MANUAL



    SPECS

    SKU
    ION1600.4D
    Total Watts (Peak)
    4800W
    RMS Power @ 4 ohm
    4 x 240W
    RMS Power @ 2 ohm
    4 x 400W
    RMS Power @ 1 ohm
    N/A
    RMS Power @ 4 ohm Bridge
    2 x 800W



    AUDIO

    Frequency Response
    10Hz-20KHz
    Signal to Noise Ratio
    >95dB
    Efficiency @ 4 ohm
    88%
    Damping Factor
    210
    Input Impedance
    27Kohms
    Channel Separation
    59dB
    Total Harmonic Distortion (THD)
    0.01%
    Low Level Input Range
    0.2-6V
    High Level Input
    Yes
    Selectable X-Over
    LPF/HPF/FULL
    X-Over Filter Range
    40Hz-2KHz
    Bass Boost Range
    0~12dB
    Bass Boost Frequency
    45Hz



    FEATURES

    Amplifier Class
    Digital
    Amplifier Type
    Full-Range Stereo
    Number of Channels
    4
    Minimum Impedance
    2 Ohm (St) / 4 Ohms (Bridge)
    Led Indicator
    Power / Protect / Clipping
    Power Input Terminal Size
    4 AWG
    Fuse Size
    140A (external)
    Remote Level Control
    No
    Cooling Fan
    Yes
    Thermal Protection
    Yes
    Over-Load Protection
    Yes
    DC Output Protection
    Yes
    Short Circuit Output Protection
    Yes
    Voltage Input Protection
    Yes
    Clipping Protection
    Yes
    Body Color / Finish
    Aluminum Black / Silver



    EXTRA FEATURES

    Hi-Level Speaker connector
    Yes
    Tiffany RCA Terminal
    Yes
    LED Clip Indicator
    Yes
    High Efficiency Micro Digital Design
    Yes



    MEASUREMENT

    Overall Length
    7.32" / 186mm
    Overall Wide
    4.72" / 120mm
    Overall Height
    2" / 52mm
    Heatsink Length
    6" / 153mm
    Gross Single Unit Weight
    1.3Kg

    Load More

    PRODUCT OVERVIEW

    DS18 ION1600.4D



    Introducing DS18’s ION1600.4D, the perfect digital micro amplifier addition to your car audio system for boosting performance ensuring a premium listening experience!

    Hi-level Inputs and Tiffany RCA’s allow this amplifier to be easily integrated into any existing audio setup and ensure optimal signal transfer for crystal clear sound. The ION1600.4D’s miniature size and surface mount component technology allows it to be placed almost anywhere in your build without taking up too much space.

    The full variable crossover switch lets you customize your audio settings to your preferences for enhanced audio clarity across all frequencies.

    Surface mount component technology makes this amplifier highly resistant to vibrations, ensuring stable performance even on rough terrain. Additionally, protective coating prevents moisture corrosion on the PCB, guaranteeing longevity and durability.

    Safety was a top priority in the creation of DS18’s ION1600.4D amplifier. The power, protection, and clipping LED indicator always keeps you informed of the amplifiers status. While short circuit thermal, DC offset, and high/low voltage protection features, give you the comfort of knowing that your amplifier will operate reliably and safely.

    The ION1600.4D has power ratings of 2 X 800W at 4-ohm bridged, 4 x 400W at 2 ohms, and 4 x 240W at 4 ohms; perfect power ratings to turbocharge every component in your system!

    Experience the power and precision of DS18’s ION1600.4D!
