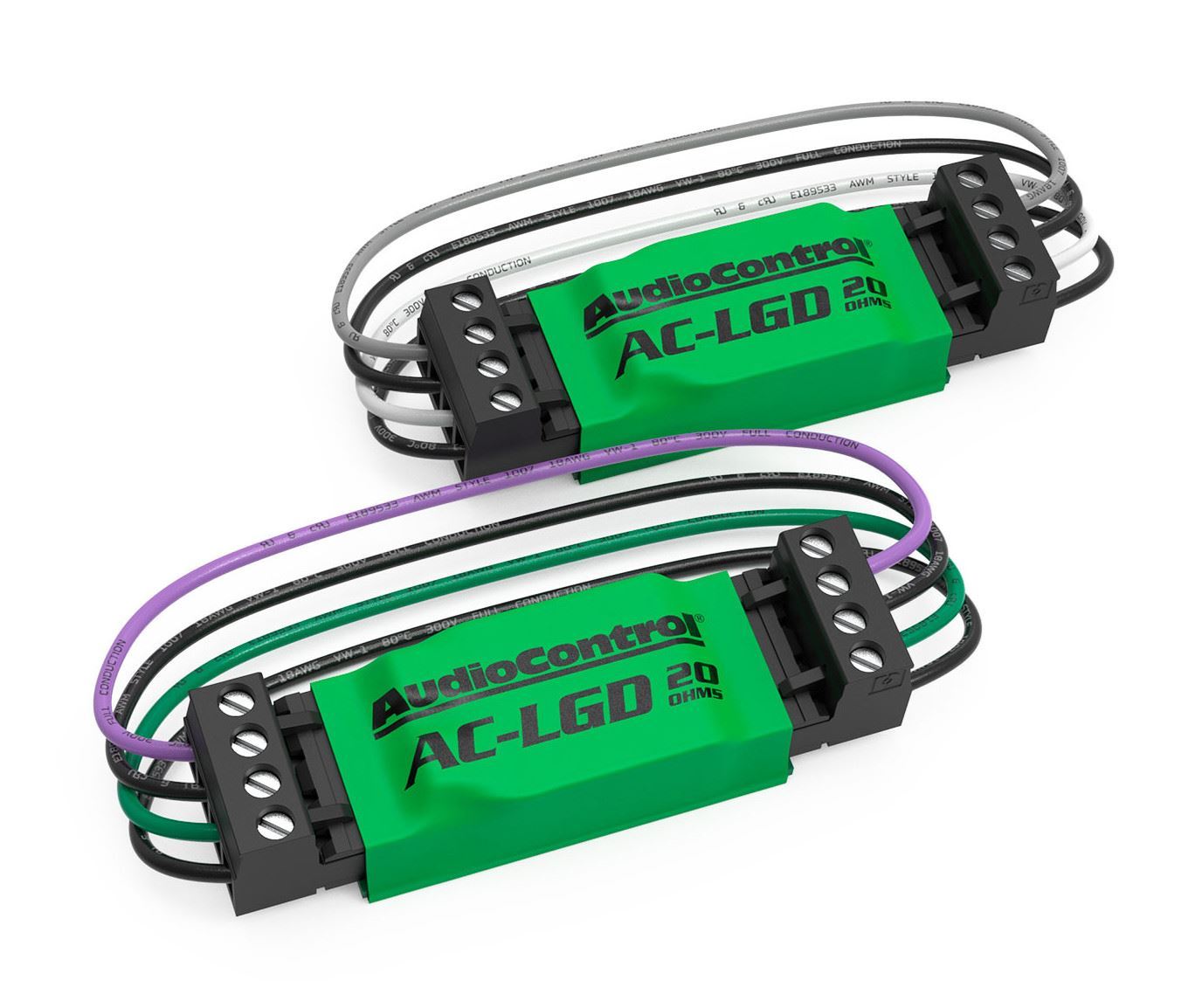

20 Ohm Load Generating Device & Signal Stabilizer
SKU: ACO-AC-LGD20
Brand part number: AC-LGD20
Brand: AudioControl


    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    AC-LGD20 Load Generating Device & Signal Stabilizer 20 Ohm

    IDEAL FOR OEM NON-AMPLIFIED (NO EXTERNAL AMPLIFIER) DODGE, CHRYSLER, JEEP, MASERATI SOUND SYSTEMS

    Today’s factory amplifiers feature built in protection circuits which can mute some or all audio outputs when the factory speakers are removed. The AC-LGD 20 has been designed to generate load and stabilize signal from amplified factory system to ensure the best possible audio

    The AC-LGD 20s come in pairs and can be easily connected to your AudioControl Factory System Upgrade product with the pre-wired connectors. The AC-LGD 20 is installed between the factory speaker outputs and your line output converter or speaker level inputs on your amp or processor. Each AC-LGD 20 pair comes pre-wired with EIA standard wire colors for front and rear connections

    • Maximum Input Voltage: 15 Vrms (50 watts)
    • Input Impedance: 20 Ohms
    • Dimensions (without wires/connectors): 2.3″L x 1.0″W x .06″H
    • Dimensions (with wires/connectors): 9.75″L x 1.0″D x .06″H
    • Weight (single LGD): 1.4oz (39g)

    AC-LGD20 Load Generating Device & Signal Stabilizer 20 Ohm

    IDEAL FOR OEM NON-AMPLIFIED (NO EXTERNAL AMPLIFIER) DODGE, CHRYSLER, JEEP, MASERATI SOUND SYSTEMS

    Today’s factory amplifiers feature built in protection circuits which can mute some or all audio outputs when the factory speakers are removed. The AC-LGD 20 has been designed to generate load and stabilize signal from amplified factory system to ensure the best possible audio

    The AC-LGD 20s come in pairs and can be easily connected to your AudioControl Factory System Upgrade product with the pre-wired connectors. The AC-LGD 20 is installed between the factory speaker outputs and your line output converter or speaker level inputs on your amp or processor. Each AC-LGD 20 pair comes pre-wired with EIA standard wire colors for front and rear connections

    • Maximum Input Voltage: 15 Vrms (50 watts)
    • Input Impedance: 20 Ohms
    • Dimensions (without wires/connectors): 2.3″L x 1.0″W x .06″H
    • Dimensions (with wires/connectors): 9.75″L x 1.0″D x .06″H
    • Weight (single LGD): 1.4oz (39g)
    Products specifications
    Warranty1 YEAR
    Master Pack12
    FF Level100
    Products specifications
    Warranty1 YEAR
    Master Pack12
    FF Level100
