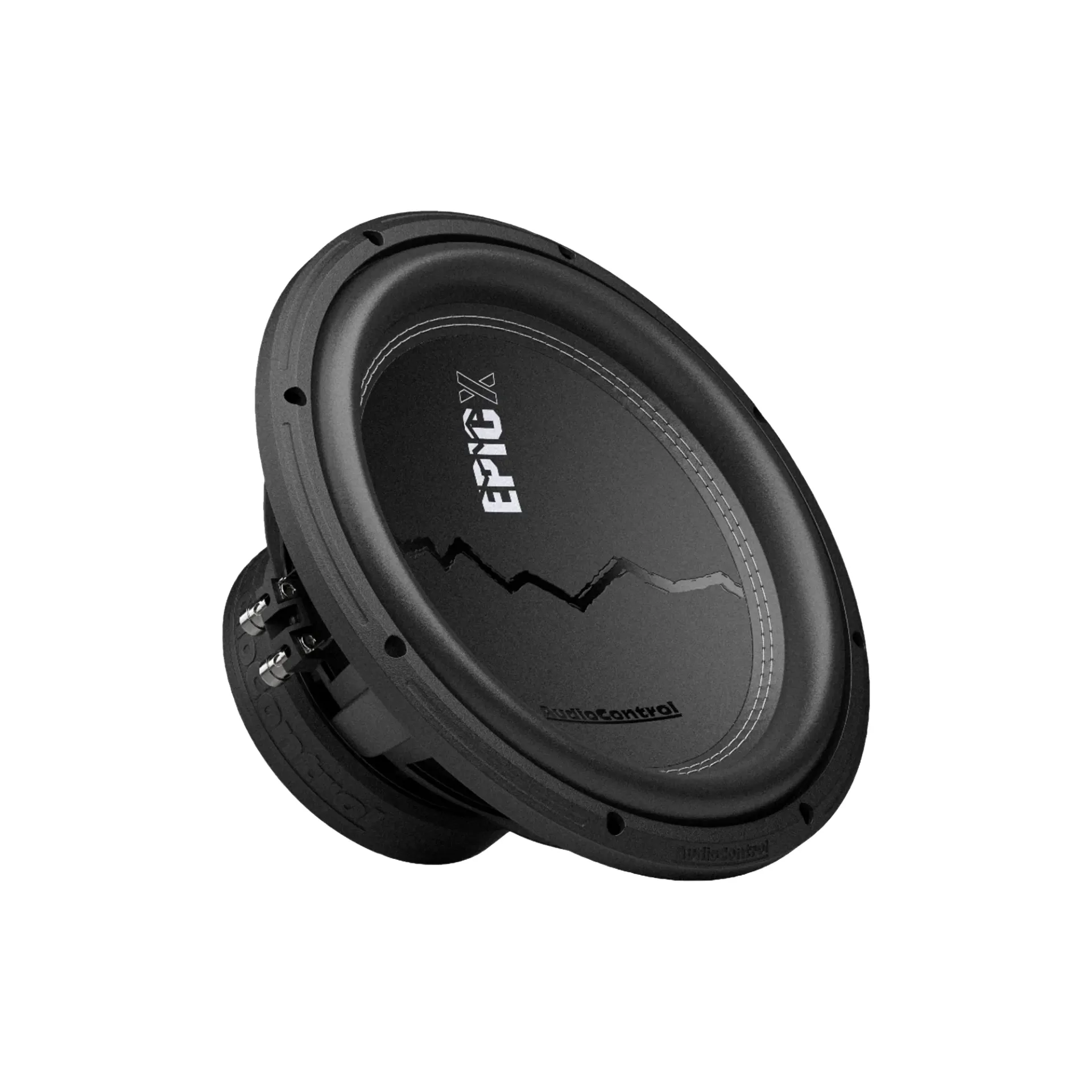

12" DVC 4 OHM Woofer 500w RMS - 750w MAX EPIC SERIES
SKU: ACO-EPICX12D4
Brand part number: EPICX12D4
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    FEATURES

    • Composite Foam Surround: Delivers smooth controlled bass, ensuring a heart-pounding sound that doesn't compromise.
    • High-Precision Motor Assembly: Maximizes efficiency and output, converting amplifier power into pure, impactful bass.
    • Rigid Steel Basket: Provides unwavering strength and eliminates resonance for tighter bass and clearer sound.
    • High-Temperature, Lightweight Voice Coil: Ensures lightning-fast, dynamic bass response and unwavering reliability under extreme power.
    • One-Piece Dust Cap Design: Enhances cone rigidity for consistent, accurate, distortion-free bass reproduction.
    • Non-Pressed Paper Cone: Delivers organic warmth, natural depth, and rich low-end character to your bass.
    • Large-Gauge, Quick-Release Black Nickel Terminals: Ensures maximum conductivity and a rock-solid, vibration-proof connection for consistent power delivery.
    • Pair with The EPICENTER: Unleash unmatched bass, as the EPICX Series is engineered to seamlessly integrate with AudioControl's legendary bass restoration processor for mind-blowing low frequencies.

    SPECIFICATIONS

    Speaker Size                                12 in / 300 mm

    Power                                             500W RMS / 750W Max

    Impedance                                   2 or 4 ohms

    Voice Coil                                      2.38 in

    Resonance Frequency           30.1 Hz

    Efficiency                                      86.6 dB

    Magnet Dimensions               6.14 x 2.95 x 0.98 in / 156 x 75 x 25 mm





    IN THE BOX: (1) EPICX12D2 or EPICX12D4 Subwoofer, User Guide



    DIMENSIONS

    • Overall Diameter: 12.4 in / 316 mm
    • Cut Out Diameter: 11.06 in / 281 mm
    • Mounting Depth: 6 in / 153.8 mm
    • Mounting Height: 1 in / 24 mm
    • Motor Diameter (w/ Cover): 6.4 in / 162 mm

    PORTED ENCLOSURE

    • External Dimensions: 23.75″ W × 16.5″ H × 12.5″ D
    • Net Internal Volume:  2 ft3
    • Exterior Volume:  2.83 ft3
    • Material Thickness: 0.75 in
    • Port Area: 22.5 sq in
    • Port Inlet: 1.2″ W × 15″H
    • Port Length: 23.75 in
    • Tuning Frequency:  33 Hz

    SEALED ENCLOSURE (Ideal)

    • External Dimensions: 19″ W × 14.5″ H × 11″ D
    • Internal Volume: 1.25 ft3
    • Material Thickness: 0.75 in

    FEATURES

    • Composite Foam Surround: Delivers smooth controlled bass, ensuring a heart-pounding sound that doesn't compromise.
    • High-Precision Motor Assembly: Maximizes efficiency and output, converting amplifier power into pure, impactful bass.
    • Rigid Steel Basket: Provides unwavering strength and eliminates resonance for tighter bass and clearer sound.
    • High-Temperature, Lightweight Voice Coil: Ensures lightning-fast, dynamic bass response and unwavering reliability under extreme power.
    • One-Piece Dust Cap Design: Enhances cone rigidity for consistent, accurate, distortion-free bass reproduction.
    • Non-Pressed Paper Cone: Delivers organic warmth, natural depth, and rich low-end character to your bass.
    • Large-Gauge, Quick-Release Black Nickel Terminals: Ensures maximum conductivity and a rock-solid, vibration-proof connection for consistent power delivery.
    • Pair with The EPICENTER: Unleash unmatched bass, as the EPICX Series is engineered to seamlessly integrate with AudioControl's legendary bass restoration processor for mind-blowing low frequencies.

    SPECIFICATIONS

    Speaker Size                                12 in / 300 mm

    Power                                             500W RMS / 750W Max

    Impedance                                   2 or 4 ohms

    Voice Coil                                      2.38 in

    Resonance Frequency           30.1 Hz

    Efficiency                                      86.6 dB

    Magnet Dimensions               6.14 x 2.95 x 0.98 in / 156 x 75 x 25 mm





    IN THE BOX: (1) EPICX12D2 or EPICX12D4 Subwoofer, User Guide



    DIMENSIONS

    • Overall Diameter: 12.4 in / 316 mm
    • Cut Out Diameter: 11.06 in / 281 mm
    • Mounting Depth: 6 in / 153.8 mm
    • Mounting Height: 1 in / 24 mm
    • Motor Diameter (w/ Cover): 6.4 in / 162 mm

    PORTED ENCLOSURE

    • External Dimensions: 23.75″ W × 16.5″ H × 12.5″ D
    • Net Internal Volume:  2 ft3
    • Exterior Volume:  2.83 ft3
    • Material Thickness: 0.75 in
    • Port Area: 22.5 sq in
    • Port Inlet: 1.2″ W × 15″H
    • Port Length: 23.75 in
    • Tuning Frequency:  33 Hz

    SEALED ENCLOSURE (Ideal)

    • External Dimensions: 19″ W × 14.5″ H × 11″ D
    • Internal Volume: 1.25 ft3
    • Material Thickness: 0.75 in
