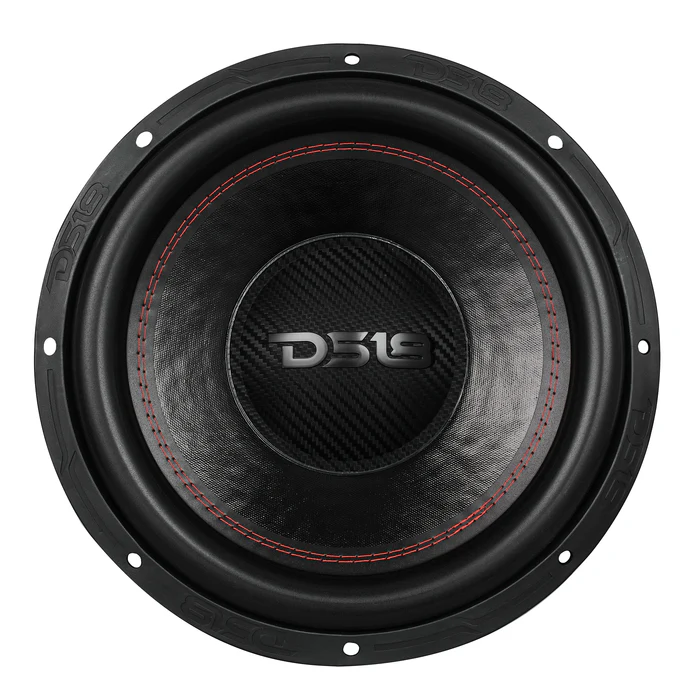

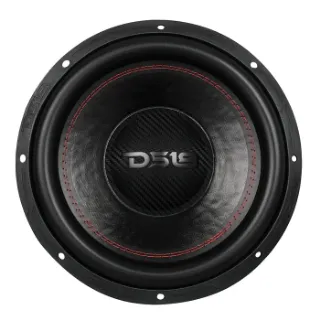

Give your car the BOOM it needs with the EXL-TR12.4D! This high-excursion subwoofer delivers an astonishing 3000W MAX and 1500W RMS for full-powered BASS!
Crafted with a non-pressed paper cone and fortified by an epoxy coating, the EXL-TR12.4D guarantees durability while maintaining superior sound quality. The dual 4-ohm impedance configuration provides flexibility in wiring options, making it an ideal choice for custom installations.
The heart of the EXL-TR12.4D lies in its advanced materials and design. With a 3" black aluminum voice coil former and SV winding material, this subwoofer ensures efficient heat dissipation, allowing it to perform seamlessly even during extended high-output use. The spider-crossed leads further enhance reliability by maintaining signal integrity for uninterrupted bass performance. The EXL-TR12.4D also comes with a double-stacked ferrite magnet system weighing in at 170 oz.
With a frequency response that dips as low as 10 Hz, you can capture every subtle note of your favorite tracks. The high-excursion design with 17.5mm of excursion delivers massive low-end impact, perfect for those who demand intense bass without sacrificing clarity.
Versatility is key with the EXL-TR12.4D. It’s optimized for both sealed and ported enclosures, giving you control over your sound profile—whether you prefer tight, punchy bass or a deeper, more resonant boom.
Upgrade with this versatile powerhouse that promises perfect performance for years to come!
Key Features
- 12" Subwoofer
- MAX Power: 3000 Watts
- RMS Power: 1500 Watts
- Impedance: 4 OHM DVC ~ 82dB
- Dual Stacked Ferrite Magnets
- Improved Heat Dissipation ~ Reinforced Cone
SPECS
SKU
EXL-TR12.4D
Nominal Diameter
12" / 305mm
Nominal Impedance
4+4 ohms
RMS Power Handling
1500W
MAX Power Handling
3000W
Sensitivity (1w/1m)
82dB
Frequency Response
10-500 Hz
Recommended Lo Pass Crossover
120 Hz
Features
Demodulating Rings
No
Improved Heat Dissipation
Yes
Cone Shape
Curvilinear
Speaker Terminals
Push 6ga
Motor
Voice Coil Diameter
3" / 76.5mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Non-Pressed Paper + Epoxy Coating
Dust Cap Material
PPI
Surround Material
Foam
Spider Diameter
8.5" / 215mm
Leads Connection Type
Crossed Spider
Basket Material
Aluminum
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
2 x 85 Oz (170 Oz)
Displacement Volume
3.2L / 0.113ft3
Thiele & Small Parameters
Equivalent Volume Vas
12.36L / 0.436ft3
Excursion (one way) Xmax
17.5 mm
Free Air Resonance Fs
45 Hz
Mechanical Factor Qms
5.839
Electrical Factor Qes
1.254
Total Factor Qts
1.032
Moving Mass Mms
385.777g
Compliance Cms
30.891u m/N
Bl Factor BI
25.684
Voice Coil Inductance Le
6.03mH
Diaphragm Area Sd
530.929 cm?
Dc Resistance Re
3.7+3.7 ohms
Efficiency Bandwidth Product EBP
65
Recommended Enclosures
Sealed Internal Volume
17L / 0.6ft3
Sealed Box Output Response
41Hz
Ported Internal Volume
42.5L / 1.5ft3
Port Size *Square (WxHxLong)
1.52"x12.28"x31.82" / 38.5x312x808.2mm
Port Tuning Frequency
30Hz
Ported Box Output Response
25Hz
Measurement
Overall Diameter
12.5" / 319mm
Overall Depth
9" / 230mm
Front Mount Baffle Cutout
11.1" / 282mm
Mounting Depth
7.6" / 193mm
Motor Diameter
7.5" / 191mm
