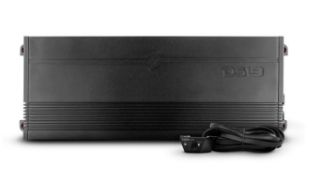

G Series 5Ch Amplifier
SKU: DD-G40005D
Brand part number: G40005D
Brand: DS18
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    POWER
    Total Watts (Peak)    4000W
    RMS Power @ 4 ohm    4 x 130W / SUB: 300W
    RMS Power @ 2 ohm    4 x 220W / SUB: 600W
    RMS Power @ 1 ohm    SUB: 900W
    RMS Power @ 4 ohm Bridge    2 x 420W
    AUDIO
    Frequency Response    20Hz-20Khz
    Signal to Noise Ratio    >90dB
    Efficiency @ 4ohm    0.83
    Damping Factor    78
    Input Impedance    22K
    Channel Separation    55dB
    Total Harmonic Distortion (THD)    0.0001
    Low Level Input Range    0.25-6V
    High Level Input    No
    Selectable X-Over    HPF/LPF
    X-Over Filter Range    HPF:10-250Hz / LPF:50-250Hz
    Bass Boost Range    0-12dB
    Bass Boost Frequency    Fixed @ 45Hz
    Infrasonic Filter    10-50Hz
    Phase Selector    No
    FEATURES
    Amplifier Class    Digital (D)
    Amplifier Type    5CH Full Range
    Number of Channels    5CH
    Minimum Impedance    2ohm St / 4ohm Bridge / 1ohm Sub
    Led Indicator    Power / Protection / Clip
    Power Input Terminal Size    4ga
    Fuse Size    160A
    Remote Level Control    Yes
    Cooling Fan    No
    Voltmeter     No
    Thermal Protection    Yes
    Over-Load Protection    Yes
    DC Output Protection    Yes
    Short Circuit Output Protection    Yes
    Voltage Input Protection    Yes
    Clipping Protection     Yes
    Body Color / Finish    Matte black
    MEASUREMENT
    Overall Length    12.8" / 325mm
    Overall Wide    4.72" / 120mm
    Overall Height    1.96" / 50mm
    Heatsink Length     10.9" / 278mm
    Gross Single Unit Weight    2.2KG

    POWER
    Total Watts (Peak)    4000W
    RMS Power @ 4 ohm    4 x 130W / SUB: 300W
    RMS Power @ 2 ohm    4 x 220W / SUB: 600W
    RMS Power @ 1 ohm    SUB: 900W
    RMS Power @ 4 ohm Bridge    2 x 420W
    AUDIO
    Frequency Response    20Hz-20Khz
    Signal to Noise Ratio    >90dB
    Efficiency @ 4ohm    0.83
    Damping Factor    78
    Input Impedance    22K
    Channel Separation    55dB
    Total Harmonic Distortion (THD)    0.0001
    Low Level Input Range    0.25-6V
    High Level Input    No
    Selectable X-Over    HPF/LPF
    X-Over Filter Range    HPF:10-250Hz / LPF:50-250Hz
    Bass Boost Range    0-12dB
    Bass Boost Frequency    Fixed @ 45Hz
    Infrasonic Filter    10-50Hz
    Phase Selector    No
    FEATURES
    Amplifier Class    Digital (D)
    Amplifier Type    5CH Full Range
    Number of Channels    5CH
    Minimum Impedance    2ohm St / 4ohm Bridge / 1ohm Sub
    Led Indicator    Power / Protection / Clip
    Power Input Terminal Size    4ga
    Fuse Size    160A
    Remote Level Control    Yes
    Cooling Fan    No
    Voltmeter     No
    Thermal Protection    Yes
    Over-Load Protection    Yes
    DC Output Protection    Yes
    Short Circuit Output Protection    Yes
    Voltage Input Protection    Yes
    Clipping Protection     Yes
    Body Color / Finish    Matte black
    MEASUREMENT
    Overall Length    12.8" / 325mm
    Overall Wide    4.72" / 120mm
    Overall Height    1.96" / 50mm
    Heatsink Length     10.9" / 278mm
    Gross Single Unit Weight    2.2KG

    Products specifications
    Warranty1 YEAR
    Master Pack4
    FF Level100
    Products specifications
    Warranty1 YEAR
    Master Pack4
    FF Level100
