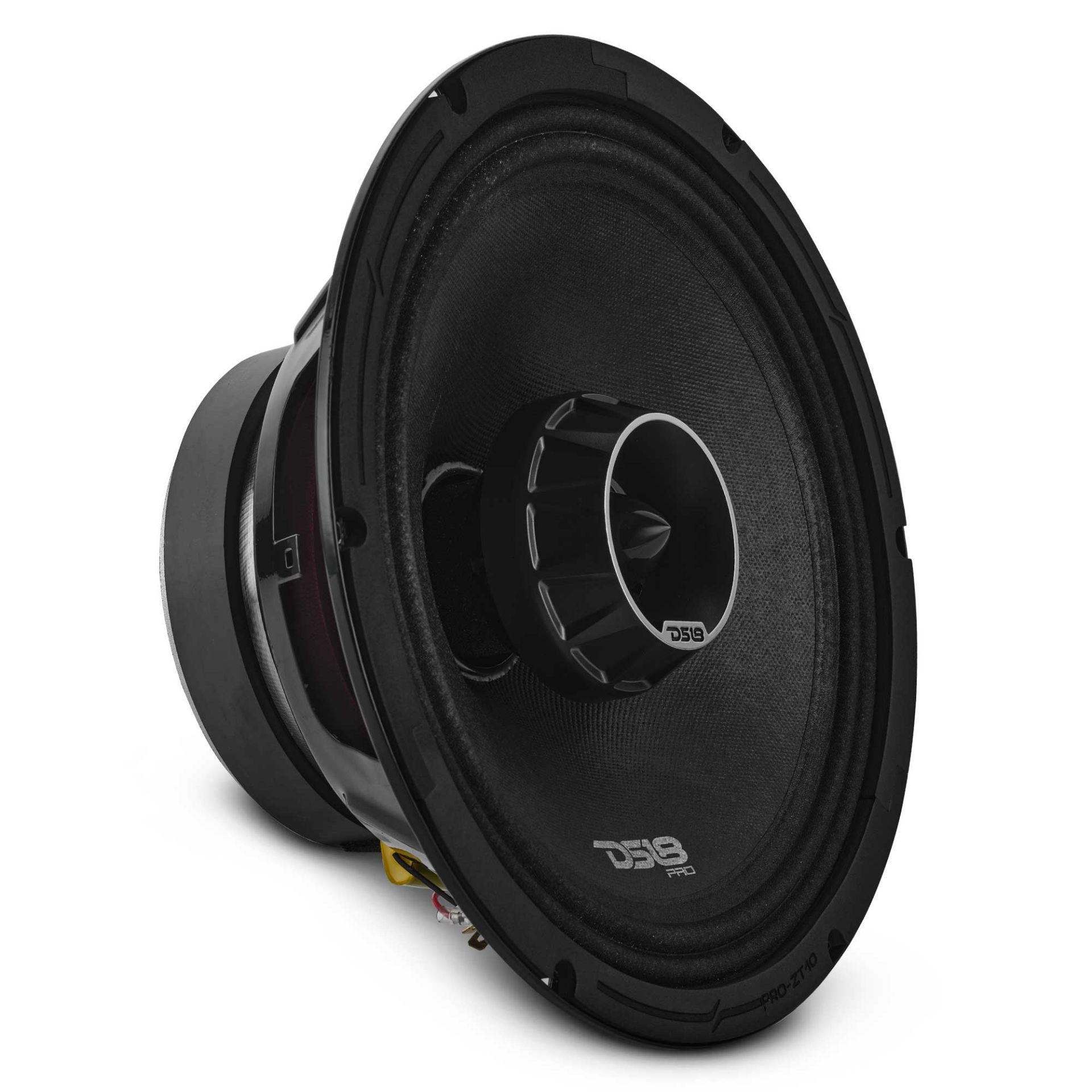

DD-PRO-ZT10

Specifications

Nominal Diameter
10" / 254mm
Nominal Impedance
4-Ohm
RMS Power Handling
300W
MAX Power Handling
600W
Sensitivity (1w/1m)
100.3 dB
Frequency Response
45Hz-20kHz
Recommended HI Pass Crossover
60Hz
Pair or Single
Single
Grill Included
No
Voice Coil Water Protection
No
Water-Resistant Rating
N/A

Motor

Voice Coil Diameter
2" / 50.6mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Water-Resistant Paper
Surround Material
Treated Cloth
Basket Material
Steel
Basket Color/Finish
Glossy Black
Magnet Material
Ferrite
Magnet Weight
40 Oz

Tweeter Specifications

Voice Coil Diameter
1.5" / 38mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminum Alloy
Magnet Material
Neodymium (N38H)
Magnet Weight
1.3 Oz

Thiele & Small Parameters

Equivalent Volume
21.6L / 0.762ft3
Excursion (one way)
1.7mm
Free Air Resonance
76Hz
Mechanical Factor (Qms)
3.92
Electrical Factor (Qes)
0.65
Total Factor (Qts)
0.56
Mechanical Mass
35.5g
Mechanical Compliance
0.122 mm/N
BL Factor
8.98
Voice Coil Inductance
0.23 mH
Cone Area
352.99 cm2
DC Resistance
3.2 ohms
Mechanical Mass w/o Air
18.346g
