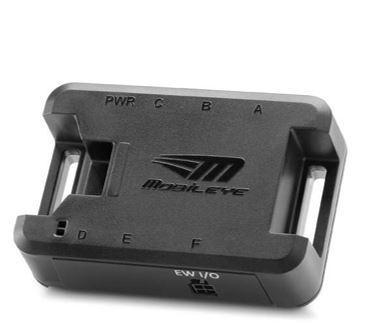

ME5ABOX001 Mobileye EBox Enhancement Box (used in cars which don't have a CAN signals)
The Mobileye ME-5 Enhancement Box (E Box) is an adapter that allows for installation of the Mobileye system in any vehicle regardless of CAN bus availability. It can also be used to drive two configurable ground outputs
- Can be used for a full Analog Mobileye installation, for a Mixed CAN/Analog Mobileye installation or just as a source for 2 additional analog outputs in a full CAN installation
- Supports up to 6 analog signals inputs (for non-CAN bus vehicles) and 2 analog outputs for various devices/applications
- Enables easier installation on vehicle with a limited variety of signals on the CAN-bus and/or with no CAN-bus and allows the ability to upgrade an installation from an older Mobileye system using the existing wiring/connections
- Inputs can be configured for either a positive or negative trigger
- Outputs are typical ground out with 100ma capacity
- Alert Outputs Can Be Selected By Type, Either Continuous or Patterned
- Continuous Output will be active for as long as the alert is active
- Patterned output can be configured according to user demands
- Some suggested uses for the E-Box outputs would be:
Muting the radio during HMW- Connecting either output to the Radio mute wire can mute the radio whenever HMW is below defined threshold. This action makes the driver aware of unsafe distance by muting audio system
Deactivate Cruise Control during HWM- Connecting either output to the Cruise Control inhibitor switch can deactivate Cruise Control whenever HMW event is issued. This application becomes the first Retrofit Enhanced Cruise Control (ECC) system
Driving Haptic Feedback Device during LDW- Connecting to external vibrator installed in the driver’s seat in order to supply haptic feedback warning. This application provides an extremely innovative and effective alert to the driver
