PC-DMH-1800NEX

Previous productPC-DEH-S7200BHS

Next productPC-DMH-2000NEX

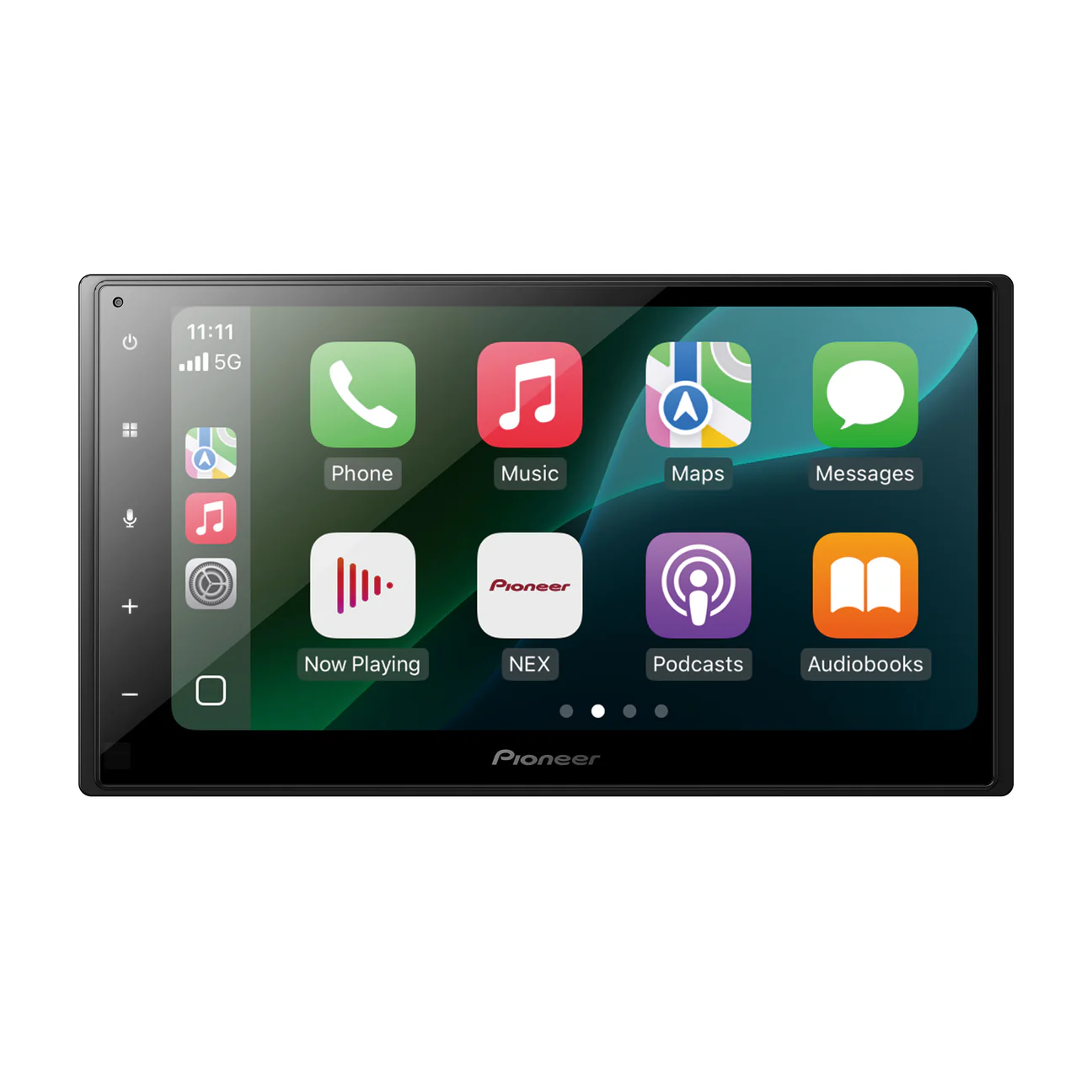

6.8" - Apple CarPlay®, Android Auto™, Bluetooth® - Multimedia Digital Media Receiver

SKU: PC-DMH-1800NEX

Brand part number: DMH-1800NEX

Brand: Pioneer NEX

Be the first to review this product

Unit of Measure: EACH

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

MAP:

MAP Promotion $300.00 through 11/30/2025

The DMH-1800NEX offers connectivity solutions designed for today’s smartphone-driven lifestyle. This 6.8” receiver features a capacitive touchscreen display and includes built-in Bluetooth®, Android Auto™ (wired), wired Apple CarPlay® (wired), SiriusXM-Ready™, and much more. The DMH-1800NEX also has a 13-band graphic equalizer and is equipped with a backup camera input.

PRODUCT PERFORMANCE
Continuous Power Output 22 W x 4-Channel	Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output 50 W x 4-ch 4 ohm	RCA Preamp Outputs 6-ch
RCA Preout Voltage 2V	RMS Power Output (CTA-2006) 14 W RMS x 4-ch 4 ohm

GENERAL
Detachable Face Security Fixed	Multi-Language Display English, French, Spanish Portuguese, Chinese (Simplified)
Music Browser USB	Remote Control Included
Steering Wheel Control Ready (Adapter Sold Separately) Yes

DISPLAY
Back Light LED	Brightness Control Yes
Color Customization 5 key colors	Device (Non-DIN/Modular Unit) 2-DIN
Dimmer Automatic with vehicle illumination, Manual	Display Off Mode Yes
Home Screen Customization Yes	Monitor Mechanism Fixed
Resolution WVGA (800 x 480)	Screen Size/Aspect Ratio 6.8"/16:9
Touch Screen Capacitive

BLUETOOTH
Advanced Audio Distribution Profile (A2DP) Yes	AVRCP 1.6
Built-in Bluetooth® Yes	Hands-Free Yes
Microphone Included Included	Phone Registation 3-phone
Secure Simple Pairing (SSP) Yes	Sound Retriever Air Mode 1/Mode 2/Off

TUNER
Best Station Memory Yes	Local Seek tuning Yes
Presets 18 FM 12 AM	RDS Yes
SiriusXM-Ready™ (Tuner Sold Separately) Yes

INTEGRATION
Android Auto™ Wired USB Connection	Apple® CarPlay Wired USB Connection
Mirroring USB-Android Phone Only	Mobile Operating System Android,Apple iOS
Pandora® With Apple CarPlay or Android Auto	Siri® Eyes Free (VR) (Internet Required) iPhone Only
Spotify With Apple CarPlay or Android Auto	Voice Control Yes

DIGITAL MEDIA PLAYBACK
Audio Playback via USB MP3 Audio Playback,WMA Audio Playback,AAC Audio Playback,WAV Audio Playback (Hi-Res),FLAC Audio Playback (Hi-Res)	Audio Video Playback via USB .avi,.mpg/mpeg,.mp4,.3gp,.mkv,.mov,.flv,.wmv/.asf,.m4v,.ts,.m2ts,.mts
Image Display Via USB BMP,JPEG,PNG

AUDIO
Audio Bass Boost Yes	Balance Yes
Built-in Amplifier MOSFET 50 W x 4	Crossover Standard Mode HPF/LPF
Customizable Graphic Equalizer 13 Band	DA Converter 24 Bit
Digital Signal Processor Built In	Easy EQ (EEQ) Preset Equalizer Yes
Loudness High/Mid/Low/Off	Speaker Output 4-ch
Subwoofer Control Yes

EXPANDABILITY
Audio Video Inputs Input 1 - Backup Camera Dedicated,Input 2 - AUX (Minijack)	Firmware upgradability Yes
Parking Assist Lines Yes	RCA-Video-Output Yes
USB Single Rear Type-A (5V, 1-1/2 A)	USB Direct Control for iPhone® 5s and newer

Overview
Specifications

PRODUCT PERFORMANCE
Continuous Power Output 22 W x 4-Channel	Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output 50 W x 4-ch 4 ohm	RCA Preamp Outputs 6-ch
RCA Preout Voltage 2V	RMS Power Output (CTA-2006) 14 W RMS x 4-ch 4 ohm

GENERAL
Detachable Face Security Fixed	Multi-Language Display English, French, Spanish Portuguese, Chinese (Simplified)
Music Browser USB	Remote Control Included
Steering Wheel Control Ready (Adapter Sold Separately) Yes

DISPLAY
Back Light LED	Brightness Control Yes
Color Customization 5 key colors	Device (Non-DIN/Modular Unit) 2-DIN
Dimmer Automatic with vehicle illumination, Manual	Display Off Mode Yes
Home Screen Customization Yes	Monitor Mechanism Fixed
Resolution WVGA (800 x 480)	Screen Size/Aspect Ratio 6.8"/16:9
Touch Screen Capacitive

BLUETOOTH
Advanced Audio Distribution Profile (A2DP) Yes	AVRCP 1.6
Built-in Bluetooth® Yes	Hands-Free Yes
Microphone Included Included	Phone Registation 3-phone
Secure Simple Pairing (SSP) Yes	Sound Retriever Air Mode 1/Mode 2/Off

TUNER
Best Station Memory Yes	Local Seek tuning Yes
Presets 18 FM 12 AM	RDS Yes
SiriusXM-Ready™ (Tuner Sold Separately) Yes

INTEGRATION
Android Auto™ Wired USB Connection	Apple® CarPlay Wired USB Connection
Mirroring USB-Android Phone Only	Mobile Operating System Android,Apple iOS
Pandora® With Apple CarPlay or Android Auto	Siri® Eyes Free (VR) (Internet Required) iPhone Only
Spotify With Apple CarPlay or Android Auto	Voice Control Yes

DIGITAL MEDIA PLAYBACK
Audio Playback via USB MP3 Audio Playback,WMA Audio Playback,AAC Audio Playback,WAV Audio Playback (Hi-Res),FLAC Audio Playback (Hi-Res)	Audio Video Playback via USB .avi,.mpg/mpeg,.mp4,.3gp,.mkv,.mov,.flv,.wmv/.asf,.m4v,.ts,.m2ts,.mts
Image Display Via USB BMP,JPEG,PNG

AUDIO
Audio Bass Boost Yes	Balance Yes
Built-in Amplifier MOSFET 50 W x 4	Crossover Standard Mode HPF/LPF
Customizable Graphic Equalizer 13 Band	DA Converter 24 Bit
Digital Signal Processor Built In	Easy EQ (EEQ) Preset Equalizer Yes
Loudness High/Mid/Low/Off	Speaker Output 4-ch
Subwoofer Control Yes

EXPANDABILITY
Audio Video Inputs Input 1 - Backup Camera Dedicated,Input 2 - AUX (Minijack)	Firmware upgradability Yes
Parking Assist Lines Yes	RCA-Video-Output Yes
USB Single Rear Type-A (5V, 1-1/2 A)	USB Direct Control for iPhone® 5s and newer
